Regional Flood Risk Management

Rock Island District
Published Oct. 1, 2021

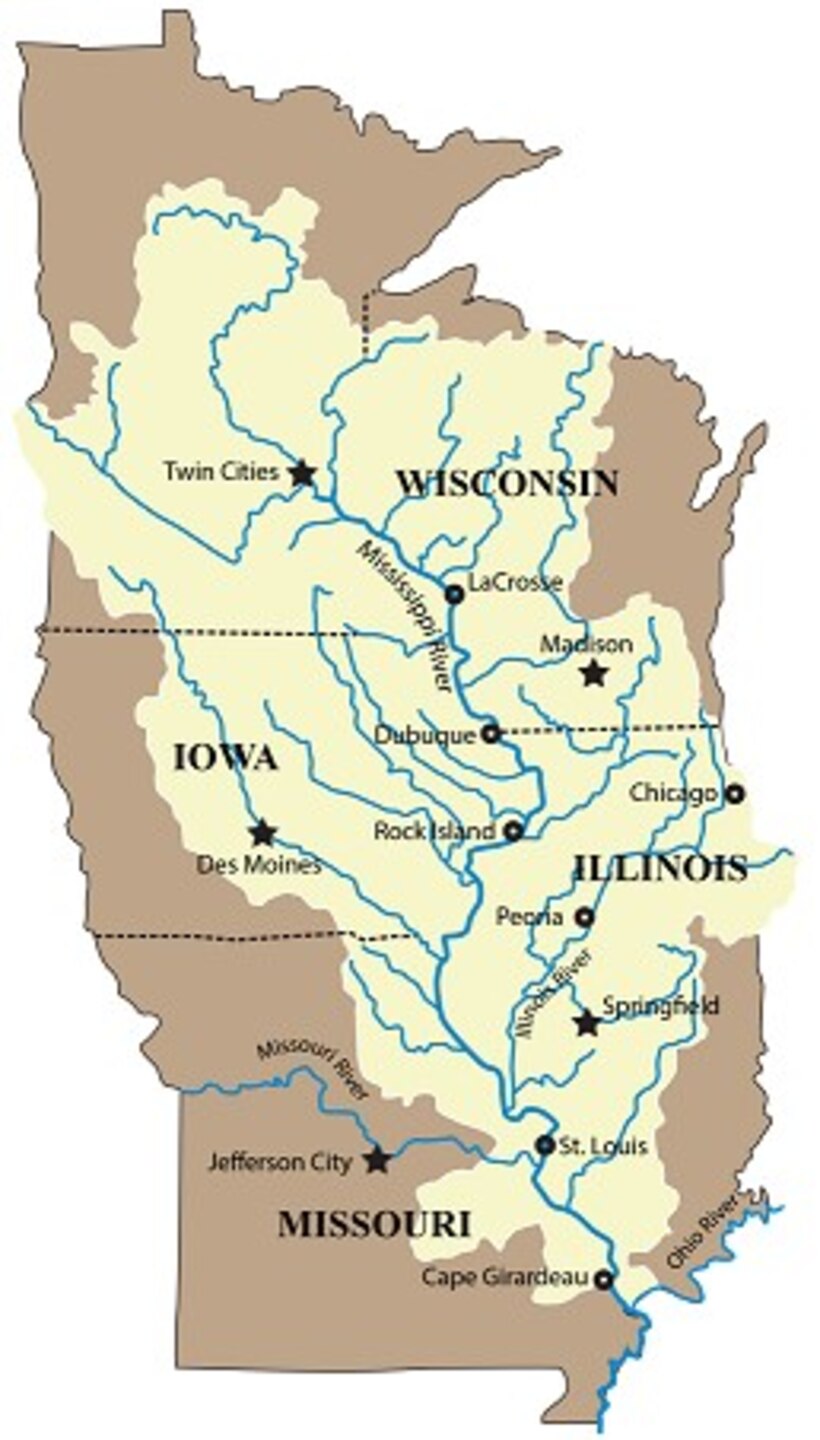

Upper Mississippi River Basin Map

Upper Mississippi River Basin Map


Upper Mississippi River


In recent years, the Upper Mississippi River watershed has experienced more frequent flooding with higher stages, particularly in the last ten years with major floods occurring in 2008, 2010, 2011, 2013, 2014, and 2019. In Quincy, Illinois, alone, four of the top five record crests have happened in the last twenty years. In addition to the challenges of increased flooding, the Upper Mississippi River watershed also lacks a regional flood risk management strategy comparable to the Mississippi River and Tributaries project on the Lower Mississippi River. The U.S. Army Corps of Engineers, St. Paul, Rock Island and St. Louis Districts, are working collaboratively with the states and local communities to develop a systemic and sustainable flood risk management strategy that would reduce the risks and consequences of flooding.


The Upper Mississippi River watershed is defined as the drainage area above Cairo, Illinois, at the confluence of the Mississippi and Ohio rivers exclusive of the Missouri River Basin and encompasses approximately 185,000 square miles. It includes the states of Minnesota, Wisconsin, Iowa, Illinois and Missouri and covers approximately 1,200 miles of navigable river on the Upper Mississippi and Illinois rivers. The UMR watershed and associated environments have a rich record of human history spanning more than 12,000 years and is one of the most archeologically and historically significant regions in the country. In modern times, the UMR has assumed a significant role in the development and prosperity of the Midwestern economy and way of life. The river is both a source of prosperity and challenges.

The waters of the UMR create a nationally significant ecosystem and a nationally significant transportation system but also bring flooding. When the levees and reservoirs of the UMR were built, by both federal and non-federal resources, they were not constructed in accordance with any overall systemic strategy or a consistent design basis. These facilities have a wide variety of structural integrity and provide varying levels of flood risk reduction for similar land uses. The majority of the structures were federally constructed or improved. Most were planned, designed and built incrementally rather than systemically, under various authorities resulting in differing levels of risk reduction. Additionally, in accordance with the project authorizations, these structures are operated and maintained by the local sponsor. The average age of the agriculture systems on the Upper Mississippi and Illinois rivers is 75 years old.

The risks, due to a lack of regional flood risk management strategy, remain high and the Flood of 1993 provided a vivid demonstration of the vulnerabilities from a lack of regional strategy. Forty-seven deaths were attributed to the Flood of 1993 as well as nearly $15 billion of damage. The social disruption was beyond measure, with more than 70,000 homes damaged or destroyed and approximately 74,000 people evacuated. The Corps is seeking to collaboratively work with other Federal agencies, state agencies, local communities and stakeholders to develop a Regional Flood Risk Management (RFRM) strategy. A collaborative, integrated, holistic and sustainable flood risk management strategy is needed to protect the public and reduce the flood damages to the Nation. A resilient Upper Mississippi River (UMR) FRM system will protect lives and property, secure our Nation by reducing risk from disaster and reduce the potential of future Federal, State and local expenditures.

The first step in developing a regional flood risk management strategy for the UMR is to develop a hydraulic model in order to understand and evaluate the impacts of levee and floodplain alterations. The hydraulic model is a key "tool" and would be a shared model used by Federal and states agencies to replace multiple existing models currently used to manage the floodplains more effectively and consistently. The first phase started in FY16 with a $500,000 reprogramming, which allowed the development of a hydraulic model for a 320-mile segment stretching from Keokuk, IA (River Mile 364) to Thebes, IL (River Mile 44). Phase one modeling work initiated in August 2016 was completed in January 2018. The Phases II and IV of modeling was funded for $575,000 in 2020 for a segment from Anoka, MN to Keokuk, IA. Phase II and IV of the modeling work initiated in October 2019 was completed in September 2020.  The fourth and final phase of modeling on the Illinois River portion was funded for $485,000 in 2021 and will need an additional $120,000 in 2022 to complete modeling.

In addition to the hydraulic model, there is a need to incorporate the last 20+ years of flood data and utilize the latest climate guidance to update the flow frequencies on the Upper Mississippi River. This updated flow frequency information will provide better information for managing flood reservoirs, identifying community flood risk in the UMR Basin, and improving the MR&T operations.

RFRM is a joint effort of the Rock Island, St. Louis and St. Paul Districts in collaboration with federal, state and local agencies and stakeholders. It works with available information and integrating with work by others and other programs to the extent possible.


The Corps of Engineers is actively working with partners to address the flood risk management issues on the Upper

Mississippi River in order to reduce the risks and consequences of flood related damages and to improve system resilience. The first three phases in developing an Upper Mississippi River (UMR) hydraulic model have been completed and the fourth and final phase has been initiated. The estimated cost is $120,000 to complete the third and final phase in 2022.

Approximately $320K has been provided by the MR&T project to coordinate the scope of the flow frequency study with on-going MR&T studies. Approximately $3.2 million is needed to complete the study.

Additional Information


SI - Special Interest

Summarized Project Costs

Estimated Federal Cost


Estimated Non-Federal Cost


Estimated Total Project Cost


Allocations Prior to FY 2022


FY 2021 Allocation


FY 2022 Allocation


FY 2022 President’s Budget


FY 2022 Total Capability



Major Work Item Prior Fiscal Year

FY 2021: The project moved forward with coordination with users of HEC-RAS hydraulic model for the completed three phases of the hydraulic model, advanced development of the HEC-RAS hydraulic model for IL River portion of the Upper Mississippi River and began scoping for the UMR Flow Frequency Study.

Major Work Item Current Fiscal Year

FY 2022: If funded, work will proceed with completion of the HEC-RAS hydraulic model for IL River portion of the Upper Mississippi River, and begin development of the UMR Flow Frequency Study.
